Image Classification

Image Classification with PyTorch

One of the popular methods to learn the basics of deep learning is with the MNIST dataset. It is the "Hello World" in deep learning. The dataset contains handwritten numbers from 0 - 9 with the total of 60,000 training samples and 10,000 test samples that are already labeled with the size of 28x28 pixels.

Step 1) Preprocess the Data

Before you start the training process, you need to understand the data. In the first step, you will load the dataset using torchvision module. Torchvision will load the dataset and transform the images with the appropriate requirement for the network such as the shape and normalizing the images.

import torch
import torchvision
import numpy as np
from torchvision import datasets, models, transforms

# This is used to transform the images to Tensor and normalize it
transform = transforms.Compose(
   [transforms.ToTensor(),
    transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))])

training = torchvision.datasets.MNIST(root='./data', train=True,
                                       download=True, transform=transform)
train_loader = torch.utils.data.DataLoader(training, batch_size=4,
                                         shuffle=True, num_workers=2)

testing = torchvision.datasets.MNIST(root='./data', train=False,
                                      download=True, transform=transform)
test_loader = torch.utils.data.DataLoader(testing, batch_size=4,
                                        shuffle=False, num_workers=2)

classes = ('0', '1', '2', '3',
          '4', '5', '6', '7', '8', '9')

import matplotlib.pyplot as plt
import numpy as np

#create an iterator for train_loader
# get random training images
data_iterator = iter(train_loader)
images, labels = data_iterator.next()

#plot 4 images to visualize the data
rows = 2
columns = 2
fig=plt.figure()
for i in range(4):
   fig.add_subplot(rows, columns, i+1)
   plt.title(classes[labels[i]])
   img = images[i] / 2 + 0.5     # this is for unnormalize the image
   img = torchvision.transforms.ToPILImage()(img)
   plt.imshow(img)
plt.show()

The transform function converts the images into tensor and normalizes the value. The function torchvision.transforms.MNIST, will download the dataset (if it's not available) in the directory, set the dataset for training if necessary and do the transformation process.

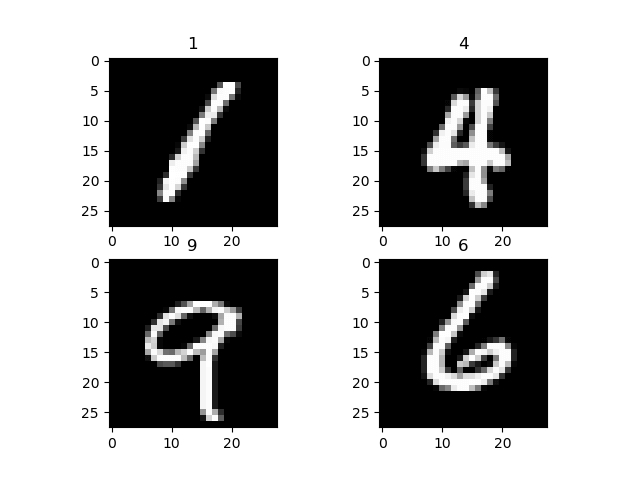

To visualize the dataset, you use the data_iterator to get the next batch of images and labels. You use matplot to plot these images and their appropriate label. As you can see below our images and their labels.

Step 2) Network Model Configuration

Now you will make a simple neural network for image classification. Here, we introduce you another way to create the Network model in PyTorch. We will use nn.Sequential to make a sequence model instead of making a subclass of nn.Module.

import torch.nn as nn

# flatten the tensor into
class Flatten(nn.Module):
   def forward(self, input):
       return input.view(input.size(0), -1)

#sequential based model
seq_model = nn.Sequential(
           nn.Conv2d(1, 10, kernel_size=5),
           nn.MaxPool2d(2),
           nn.ReLU(),
           nn.Dropout2d(),
           nn.Conv2d(10, 20, kernel_size=5),
           nn.MaxPool2d(2),
           nn.ReLU(),
           Flatten(),
           nn.Linear(320, 50),
           nn.ReLU(),
           nn.Linear(50, 10),
           nn.Softmax(),
         )

net = seq_model
print(net)

Here is the output of our network model

Sequential(
  (0): Conv2d(1, 10, kernel_size=(5, 5), stride=(1, 1))
  (1): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
  (2): ReLU()
  (3): Dropout2d(p=0.5)
  (4): Conv2d(10, 20, kernel_size=(5, 5), stride=(1, 1))
  (5): MaxPool2d(kernel_size=2, stride=2, padding=0, dilation=1, ceil_mode=False)
  (6): ReLU()
  (7): Flatten()
  (8): Linear(in_features=320, out_features=50, bias=True)
  (9): ReLU()
  (10): Linear(in_features=50, out_features=10, bias=True)
  (11): Softmax()
)

Network Explanation

  1. The sequence is that the first layer is a Conv2D layer with an input shape of 1 and output shape of 10 with a kernel size of 5

  2. Next, you have a MaxPool2D layer

  3. A ReLU activation function

  4. a Dropout layer to drop low probability values.

  5. Then a second Conv2d with the input shape of 10 from the last layer and the output shape of 20 with a kernel size of 5

  6. Next a MaxPool2d layer

  7. ReLU activation function.

  8. After that, you will flatten the tensor before you feed it into the Linear layer

  9. Linear Layer will map our output at the second Linear layer with softmax activation function

Step 3) Train the Model

Before you start the training process, it is required to set up the criterion and optimizer function. For the criterion, you will use the CrossEntropyLoss. For the Optimizer, you will use the SGD with a learning rate of 0.001 and a momentum of 0.9.

import torch.optim as optim

criterion = nn.CrossEntropyLoss()
optimizer = optim.SGD(net.parameters(), lr=0.001, momentum=0.9)

The forward process will take the input shape and pass it to the first conv2d layer. Then from there, it will be feed into the maxpool2d and finally put into the ReLU activation function. The same process will occur in the second conv2d layer. After that, the input will be reshaped into (-1,320) and feed into the fc layer to predict the output.

Now, you will start the training process. You will iterate through our dataset 2 times or with an epoch of 2 and print out the current loss at every 2000 batch.

for epoch in range(2):

#set the running loss at each epoch to zero
   running_loss = 0.0
# we will enumerate the train loader with starting index of 0
# for each iteration (i) and the data (tuple of input and labels)
   for i, data in enumerate(train_loader, 0):
       inputs, labels = data

# clear the gradient
       optimizer.zero_grad()

#feed the input and acquire the output from network
       outputs = net(inputs)

#calculating the predicted and the expected loss
       loss = criterion(outputs, labels)

#compute the gradient
       loss.backward()

#update the parameters
       optimizer.step()

       # print statistics
       running_loss += loss.item()
       if i % 1000 == 0:
           print('[%d, %5d] loss: %.3f' %
                 (epoch + 1, i + 1, running_loss / 1000))
           running_loss = 0.0

At each epoch, the enumerator will get the next tuple of input and corresponding labels. Before we feed the input to our network model, we need to clear the previous gradient. This is required because after the backward process (backpropagation process), the gradient will be accumulated instead of being replaced. Then, we will calculate the losses from the predicted output from the expected output. After that, we will do a backpropagation to calculate the gradient, and finally, we will update the parameters.

Here's the output of the training process

[1, 	1] loss: 0.002
[1,  1001] loss: 2.302
[1,  2001] loss: 2.295
[1,  3001] loss: 2.204
[1,  4001] loss: 1.930
[1,  5001] loss: 1.791
[1,  6001] loss: 1.756
[1,  7001] loss: 1.744
[1,  8001] loss: 1.696
[1,  9001] loss: 1.650
[1, 10001] loss: 1.640
[1, 11001] loss: 1.631
[1, 12001] loss: 1.631
[1, 13001] loss: 1.624
[1, 14001] loss: 1.616
[2, 	1] loss: 0.001
[2,  1001] loss: 1.604
[2,  2001] loss: 1.607
[2,  3001] loss: 1.602
[2,  4001] loss: 1.596
[2,  5001] loss: 1.608
[2,  6001] loss: 1.589
[2,  7001] loss: 1.610
[2,  8001] loss: 1.596
[2,  9001] loss: 1.598
[2, 10001] loss: 1.603
[2, 11001] loss: 1.596
[2, 12001] loss: 1.587
[2, 13001] loss: 1.596
[2, 14001] loss: 1.603

Step 4) Test the Model

After you train our model, you need to test or evaluate with other sets of images. We will use an iterator for the test_loader, and it will generate a batch of images and labels that will be passed to the trained model. The predicted output will be displayed and compared with the expected output.

#make an iterator from test_loader
#Get a batch of training images
test_iterator = iter(test_loader)
images, labels = test_iterator.next()

results = net(images)
_, predicted = torch.max(results, 1)

print('Predicted: ', ' '.join('%5s' % classes[predicted[j]] for j in range(4)))

fig2 = plt.figure()
for i in range(4):
   fig2.add_subplot(rows, columns, i+1)
   plt.title('truth ' + classes[labels[i]] + ': predict ' + classes[predicted[i]])
   img = images[i] / 2 + 0.5     # this is to unnormalize the image
   img = torchvision.transforms.ToPILImage()(img)
   plt.imshow(img)
plt.show()

Reference : https://www.guru99.com/pytorch-tutorial.html
